Rahn Groomers
Lip Brooms
Rahn Groomer Vertical Lip Brooms - Model LB100 and LB400
LB100 mounts to the front QAS of a Sand Pro 5040 – requires front lift frame assembly and front remote hydraulics.
• Eliminates the task of manually maintaining infield lips.
• Removes lip buildup by sweeping the aggregate back into the infield.
LB400 mounts to the rear QAS of a Sand Pro 3040 and 5040 – requires rear remote hydraulics.
• Eliminates the task of manually maintaining infield lips.
• Removes lip buildup by sweeping the aggregate back into the infield.
• Optional concave disc and twisted wire wheel are available for edging along cart paths or walkways.
LB250 mounts to the front QAS of a Sand Pro 5040 – requires front lift frame assembly and front remote hydraulics.
• Eliminates the task of manually maintaining infield lips.
• Removes lip buildup by sweeping the aggregate back into the infield.
• Milling head option allows you to “mill” the infield lip and maintain the depth of cut with an adjustable depth control shoe. After the lip is milled level to the playing field attach the broom and sweep the aggregate into the infield.
LB550 mounts to the rear QAS of a Sand Pro 3040 and 5040 – requires rear remote hydraulics.
• Eliminates the task of manually maintaining infield lips.
• Removes lip buildup by sweeping the aggregate back into the infield.
• Milling head option allows you to “mill” the infield lip and maintain the depth of cut with an adjustable depth control shoe. After the lip is milled level to the playing field attach the broom and sweep the aggregate into the infield.
• Optional concave disc and twisted wire wheel are available for edging along cart paths or walkways.
GL 650
The RAHN GL 650 INFIELD GROOMER provides maximum safety conditions on any playing field along with minimum maintenance time. The RAHN INFIELD GROOMER levels uneven surfaces, fills holes, prevents ridge buildup and eliminates problems with standing water.
A two-way leveling system works in locked or float position to match infield conditions. The heavy-duty scarifier loosens compacted soil, while the springtine scarifier is ideal for light, sandy soil and promotes faster drying.
The double brush broom is perfect for finishing the playing surface and can be stored upright for easy transporting. The RAHN GL 650 INFIELD GROOMER also works as an efficient de-thatching tool and prepares the outfield grass for overseeding.
With the RAHN GL 650 INFIELD GROOMER, you can provide your players with better and safer playing conditions!
Models
The RAHN GL 650 INFIELD GROOMER comes in 3 models. The GL 650-A is the Rahn Groomer base unit with heavy duty scarifier and brush. The GL 650-B is the Rahn Groomer base unit with spring tine scarifier and brush. And the GL 650-C is the Rahn Groomer base unit with the heavy duty scarifier, spring tine scarifier, and brush.
Hitches
The RAHN GL 650 INFIELD GROOMER can be attached to a wide array of grooming equipment including machines from John Deere, Toro, Jacobsen/Cushman and more. To see a list of hitches we manufacture click here.
Specifications
RAHN LEVELING SYSTEM
Double bar 72" wide; 3" x 3" x 1/4" structural steel.
HEAVY DUTY SCARIFER
60" wide bar; 2" x 2" x 1/4" structural steel; 3/8" x 1" x 3" replaceable hard-surfaced steel teeth.
SPRINGTINE SCARIFIER
60" wide; 76, 4 1/2" replaceable springtines in two rows.
TRIPLE ROW BROOM ASSEMBLY
73" wide; replaceable.
FINISH
Electrostatically applied baked powder-coated finish.
WEIGHT
225 lbs.
COMPATIBILITY
All components of the Infield Groomer system are easily interchangeable.
The new FlexSteel Brush is a versatile, durable grooming tool with multiple applications for the golf and turf industry, park maintenance, hiking and biking trails, beaches, roads, parking lots and alleyways, equestrian arenas and more.
Featuring heat treated, long wearing, abrasion-resistant steel brushes, the FlexSteel grooming equipment quickly and efficiently breaks up cores left after aeration, smoothes and levels dirt or sand surfaces, and stands up grass that has been laid down from cart traffic or mowing patterns.
With the optional springtines, the FlexSteel is an efficient tool for loosening and dethatching turf or compacted aggregate surfaces. The FlexSteel is also an excellent tool for preparing the ground for sod and seed applications by loosening the soil and removing ridges left by leveling bars and planers.
The FlexSteel Brush has proven to be a very useful tool on today's synthetic sports fields. With the correct downpressure, the FlexSteel evenly distributes and relieves compaction in the crumb rubber base, stands up the turf, and creates desirable striping patterns.
The FlexSteel Brush comes in two models designed to work with most tractors and traction vehicles. The 12 foot PH 1200 features a 3-point category-1 hitch on a six foot mainframe, with a three foot folding wing extension on each side for easy transport and storage.
The PT 600 is a six foot pull-type model, equipped with retractable transport wheels and clevis hitch. The adjustable transport wheels allow you to set the level of your brushes, assuring the correct amount of down-pressure for your desired application.

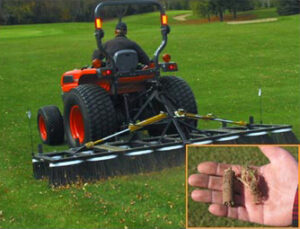

Golf Courses
The FlexSteel PH 1200, with optional springtine attachment, is a remarkably efficient tool for maintaining golf course fairways and cart paths. The FlexSteel eliminates the problem of difficult to manage cores left on the turf after core aeration. Just one or two passes with the FlexSteel separates the soil from the root system. You no longer have to take the time to collect the cores or go through the difficult process of destroying them.
The extended frame of the PH 1200 allows you to cover more area in less time. By putting the FlexSteel PH 1200 into hydraulic float position, the unit flexes both up and down to follow uneven terrain. The optional gauge wheels make it simple to adjust the down pressure of the brushes according to the type of grass.
The FlexSteel stands up turf that has been laid down by cart traffic, mowing patterns or snow accumulation. After grooming with the FlexSteel, the turf will be ready to mow. Aggregate cart paths can also be quickly and easily smoothed and leveled.
Beaches
The FlexSteel Brush quickly and efficiently smooths and levels sandy beaches. Within minutes, the FlexSteel can remove washed up vegetation from the shoreline, fill in large depressions, level mounds, and leave the area ready for play!
Before
After

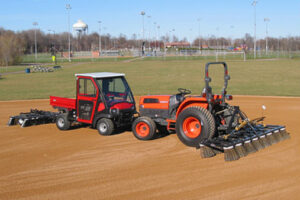

Sports Fields
The FlexSteel Brush smooths and levels your infield, filling in holes and helping to create a safer and more consistent playing surface. The FlexSteel Brush cuts maintenance time and can be efficiently used for dethatching, maintaining aggregate paths, and preparing turf areas for sod and seed application.
Hiking and Biking Trails
The FlexSteel PT 600 keeps aggregate in the best possible condition all season. The FlexSteel will maintain the trail surface without disturbing compaction. It erases ruts, footprints and washouts, leaving the trail smooth and well-groomed.
Adjusting the transport wheels lets you choose the level of down pressure needed on the brushes to meet the condition of the aggregate.
Parking Lots and Alleyways
The FlexSteel, with the optional springtine attachment, is an efficient, durable maintenance tool for reconditioning aggregate parking lots and alleyways. By eliminating the nuisance of ruts, ridges and rain-collecting potholes, the FlexSteel restores aggregate surfaces to a smooth and level condition, often relieving the need for additional aggregate.
Before
After
Before
After
All of our groomers and accessories have available replacement parts to help keep your grooming equipment productive for years to come. For a list of available parts click here.
